Counting planthoppers manually is laborious and yields inconsistent results, particularly when dealing with species with similar features, such as the brown planthopper (Nilaparvata lugens; BPH), whitebacked planthopper (Sogatella furcifera; WBPH), zigzag leafhopper (Maiestas dorsalis; ZIGZAG), and green leafhopper (Nephotettix malayanus and Nephotettix virescens; GLH). Most of the available automated counting methods are limited to populations of a small density and often do not consider those with a high density, which require more complex solutions due to overlapping objects. Therefore, this research presents a comprehensive assessment of an object detection algorithm specifically developed to precisely detect and quantify planthoppers. It utilizes annotated datasets obtained from sticky light traps, comprising 1654 images across four distinct classes of planthoppers and one class of benign insects. The datasets were subjected to data augmentation and utilized to train four convolutional object detection models based on transfer learning. The results indicated that Faster R-CNN VGG 16 outperformed other models, achieving a mean average precision (mAP) score of 97.69% and exhibiting exceptional accuracy in classifying all planthopper categories. The correctness of the model was verified by entomologists, who confirmed a classification and counting accuracy rate of 98.84%. Nevertheless, the model fails to recognize certain samples because of the high density of the population and the significant overlap among them. This research effectively resolved the issue of low- to medium-density samples by achieving very precise and rapid detection and counting.

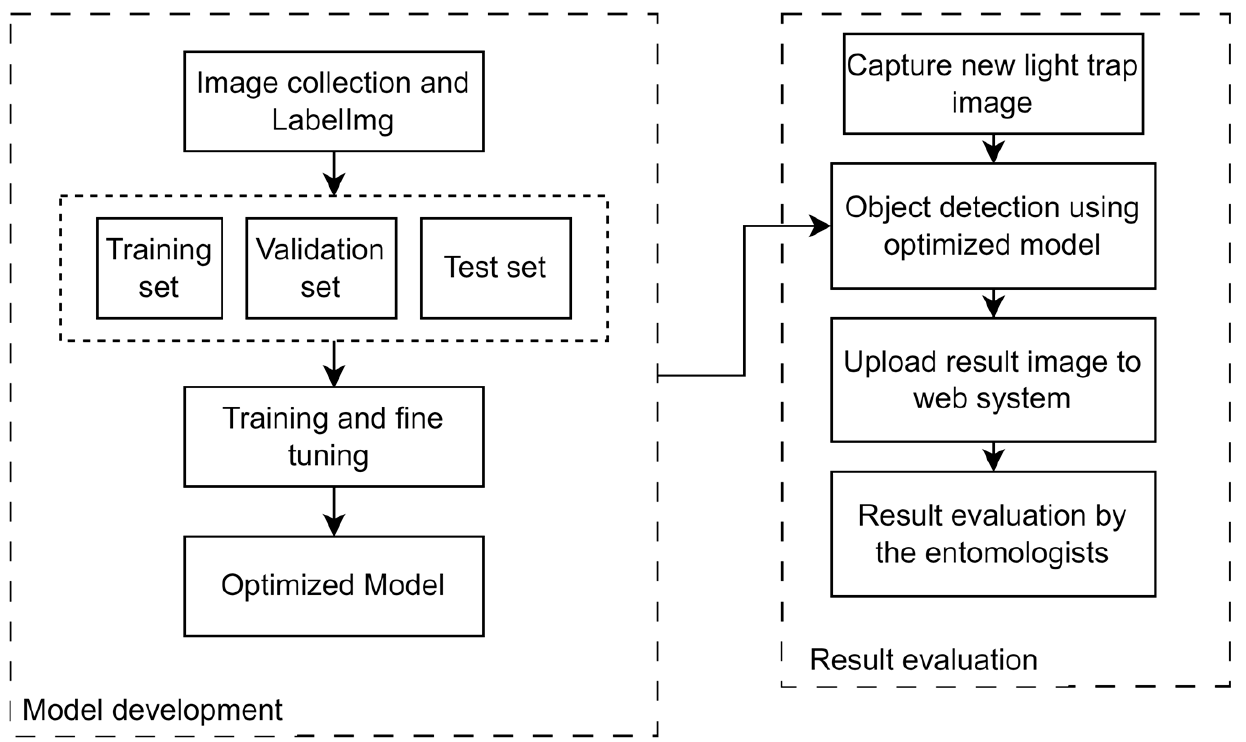

Figure 1: The process involved in this research

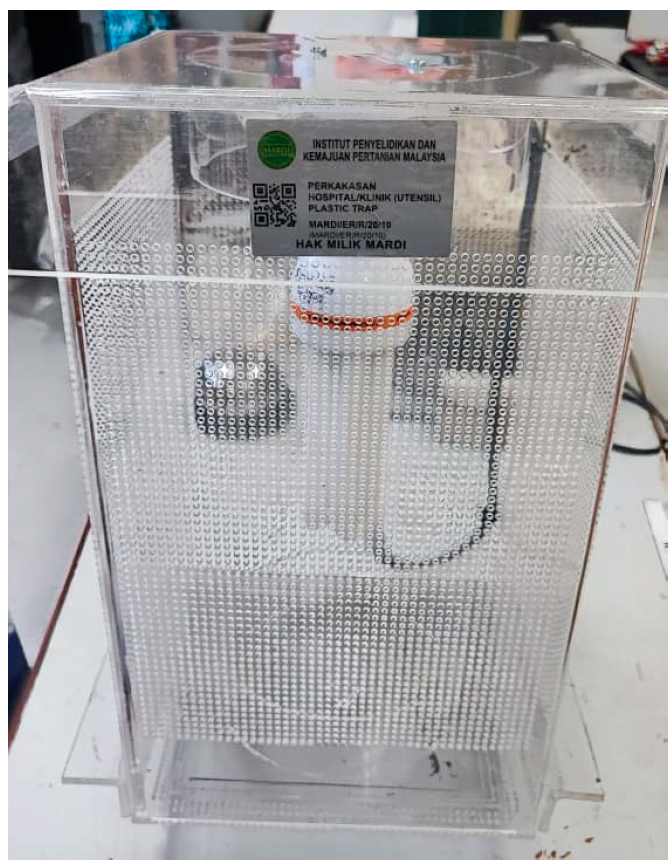

Figure 2: The transparent box used to house the light trap. Each side of the box has hundreds of small holes.

Khairunniza-Bejo S, Ibrahim MF, Hanafi M, Jahari M, Ahmad Saad FS, Mhd Bookeri MA. Automatic Paddy Planthopper Detection and Counting Using Faster R-CNN. Agriculture. 2024; 14(9):1567.

Full article: https://doi.org/
